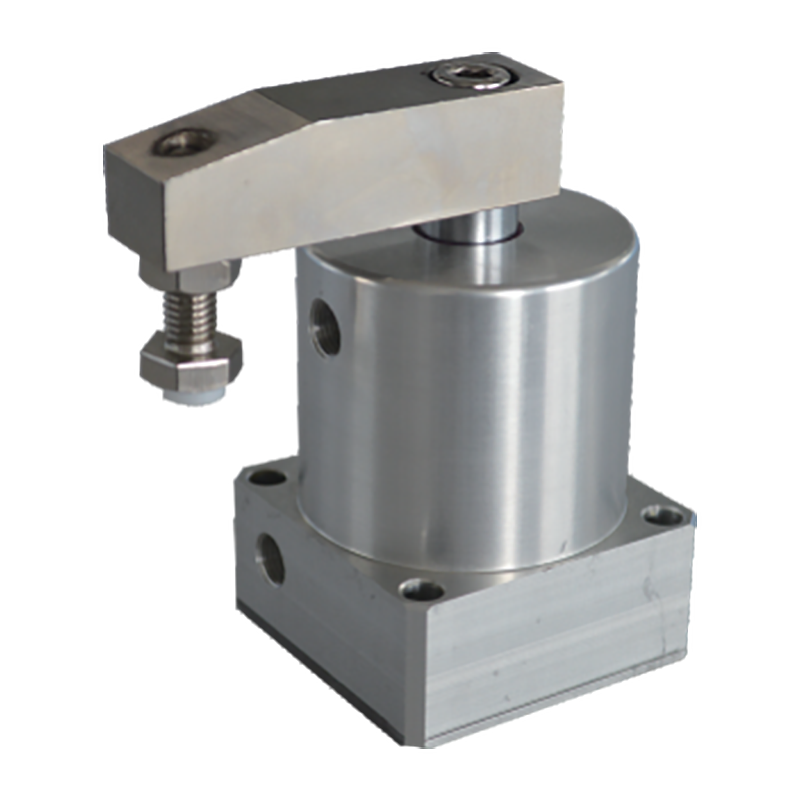

TCK Series Clamp Cylinder

TCK Series Clamp Cylinder

TCK Series Clamp cylinder is a kind of fixture driven by air pressure or hydraulic pressure. It is suitable for the special machine and fixture of mass production parts. It can greatly improve the automation degree of machining, assembly, welding, and other die fixture.

Advantages of using a corner cylinder: The first advantage greatly reduces the clamping and release time of the workpiece, because the liquid (gas) pressure fixture is dependent on the liquid (gas) pressure to achieve automatic clamping and release of the workpiece, the operator only needs to load and unload the workpiece. According to the actual calculation, automatic and semi-automatic fixture clamping and releasing time is reduced by 90% to 95% compared to manual fixtures. The second advantage of the TCK Series clamp cylinder is high precision positioning, and repeatability of clamping force to ensure the accuracy of positioning and clamping.

The third feature is as high as possible to make full use of space and improve the space utilization of the fixture. Because the structure of the standard liquid (gas) pressure element is very compact, to ensure the overall compactness of the liquid (gas) pressure fixture, so as to realize a set of fixtures at the same time clamping multiple workpieces, but also according to the process design control in order to clamp and release multiple workpieces.
